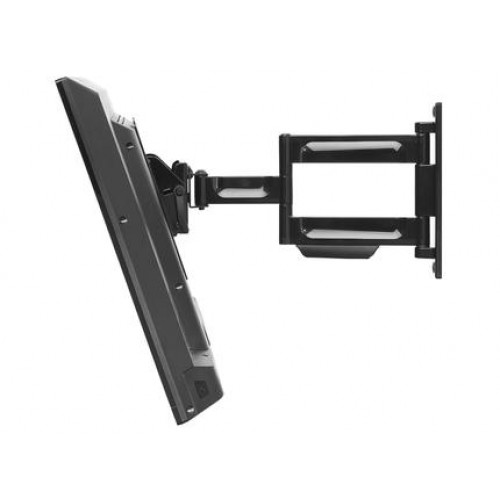

The Paramount™ series wall mounts provide versatile and multi-functional features. With PA74, extend the display up to 14.91" (379mm) or fully-retract it to just 2.8" (71mm) from the wall for the perfect viewing angle. The Hook-and-Hang™ system offers easy, one-person installation of the display. A ratcheting handle provides locking tilt capability for quick adjustments to the amount of tilt, reducing glare and optimizing the viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
- Accommodates 100 x 100, 200 x 100, or 200 x 200mm VESA® mounting patterns
- Extends 14.91" (379mm) from the wall
- Retracts 2.80" (71mm) to save space
- +15/-5° of tilt for optimal viewing angles
- ±5° of roll for post installation display leveling
- Up to ±90° of pivot
- Design is UL listed and tested to four times stated load capacity
- Hook-and-Hang™, one-person display installation
- Lock the display at any angle with the ratcheting handleIntegrated cable management protects, contains and conceals cables for a clean, professional installation
- Mounts to wood stud, concrete, cinder or breeze block
| Brackets_Stands | |
| TYPE | Full Motion |
| Mounting | |
|---|---|
| Minimum screen size | 55.9 cm (22") |
| Maximum weight capacity | 36 kg |
| Maximum screen size | 109.2 cm (43") |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 200 x 200 mm |
| Panel mounting interface | 100 x 100,100 x 200,200 x 100,200 x 200 |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Ergonomics | |
| Tilt adjustment | Y |
| Tilt angle range | -5 - 15° |
| Pivot angle | -90 - 90° |
| Cable management | Y |
| Design | |
| Product colour | Black |
| Certification | UL |
| Technical details | |
| Quantity per pack | 1 pc(s) |
| Sustainability certificates | RoHS |
| Packaging content | |
| Manual | Y |
| Mounting kit | Y |
| Weight & dimensions | |
| Width | 239 mm |
| Depth (min) | 7.1 cm |
| Depth (max) | 37.9 cm |
| Height | 222 mm |
| Weight | 2.04 kg |
| Packaging data | |
| Package width | 270 mm |
| Package depth | 299 mm |
| Package height | 82 mm |
| Package weight | 2.74 kg |
| Package type | Box |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |

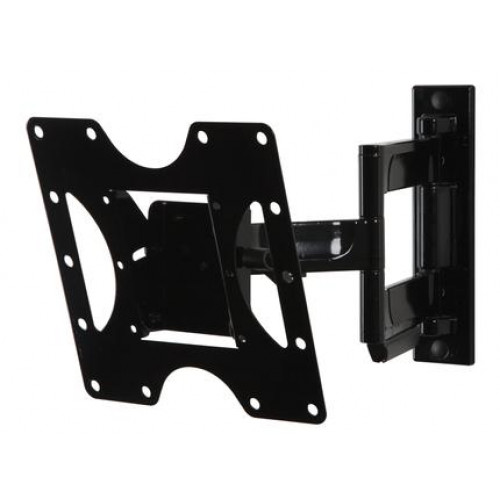

PEERLESS PRO ARTICULATING ARM WALL MOUNT 22" - 43" LCD SCREE
- Brand: Peerless-AV
- Product Code: PA740
- Availability: .
Currently out of Stock
