- Diagonal screen size (inch) 64.5 inch
- Panel resolution 3840 x 2160
- Panel technology IPS
- Operating system Android 9
- Brightness 420 cd/m²
- Response time (typical) 9 ms
- Video input Display Port1.2 (x 1), DVI-I (x 1), HDMI 2.0 (x 4), USB 2.0 (x 2), USB 3.0 (x 2), USB-C
- Audio input, 3.5 mm Jack (x 1)
- Audio output, 3.5 mm Jack (x 2)
- External control, RJ45, IR (in/out) 3.5 mm jack ,RS232C (in/out) 2.5 mm jack
- Other connections, micro SD, OPS
- Video output, DisplayPort 1.2 (x 1), DVI - D (x 1), HDMI 2.0 (x 1), USB 2.0 (x 2)
- VESA Mount 400(H)x400(V), M8
- Bezel width 16.30 mm(even)
- Built-in speakers 2 x 20 W RMS
- MTBF 30,000 hour(s)
- Storage 32 GB eMMc
- Wi-Fi AP(WC0SR2511-88112BU), STA(WCT5GM2511MT7668AU)
- GPU DDR4 4 GB
- Memory 4 GB RAM
Interactive classroom display Featuring multi-touch technology, 65", Powered by Android, Multi-touch
Android: Run your own app or choose your favourite app to run With Android OS integrated into the display, you can work with the most developed OS on the planet and save your own app directly into the display. Or, choose from the large library of Android apps and play content from there. With the built-in scheduler, you can daypart your apps and content based on your customer and time of day and with the auto-orientation feature, showing content in portrait or landscape is as simple as turning the display.
Whiteboard mode built in Inspire agile collaboration with whiteboard mode. Simply activate this feature to turn your display into a blank canvas that can be drawn on by multiple users by hand or with dedicated display markers. Everything on the screen can then be captured for easy printing or file sharing.
Multi-touch technology capable of 20 touchpoints Create a memorable interactive experience with up to 20 touchpoints at the same time. Perfect for collaborative and competitive applications, this display connects your audience with any content - making it ideal for education, public venues, corporate, hospitality and retail settings. The touch panel is HID compliant, providing true plug-and-play operation.
| Display Screens | |
| Display Size | 65" |
| Series | T-Line |
| Display | |
|---|---|
| Display diagonal | 163.8 cm (64.5") |
| Display technology | VA |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 350 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Y |
| Number of simultaneous touchpoints | 20 |
| Multi-touch | Y |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 500000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.073 billion colours |
| Pixel pitch | 0.372 x 0.372 mm |
| Display diagonal (metric) | 163.9 cm |
| Ports & interfaces | |
| HDMI ports quantity | 4 |
| HDMI input ports quantity | 4 |
| DVI port | Y |
| VGA (D-Sub) input ports | 1 |
| DisplayPorts quantity | 1 |
| USB port | Y |
| Ethernet LAN | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Y |
| Audio (L/R) out | 1 |
| PC Audio in | Y |
| RS-232 interface | Y |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash) |
| Audio | |
| Built-in speaker(s) | Y |
| Number of built-in speakers | 2 |
| RMS rated power | 40 W |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Y |
| Panel mounting interface | 400 x 400 mm |
| Bezel width (bottom) | 1.63 cm |
| Bezel width (side) | 1.63 cm |
| Bezel width (top) | 1.63 cm |
| Performance | |
| Purpose | Universal |
| Picture-in-Picture | Y |
| On Screen Display (OSD) | Y |
| Number of OSD languages | 18 |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Power consumption (typical) | 147.6 W |
| Power consumption (standby) | 0.5 W |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 175 kWh |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Energy efficiency scale | A to G |
| Computer system | |
| Computer system | Y |
| Built-in processor | Y |
| Processor model | MTK5680 |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Operating system installed | Android 9.0 |
| Video formats supported | ASF, AVI, DAT, FLV, MKV, MP4, MPEG, MPG, TS, VOB, WEBM, WMV |
| Audio formats supported | AAC, M4A, MP3, WMA |
| Image formats supported | BMP, JPEG, JPG, PNG |
| Weight & dimensions | |
| Width | 1494.3 mm |
| Depth | 106.8 mm |
| Height | 869.4 mm |
| Weight | 43.6 kg |
| Packaging content | |
| Remote control included | Y |
| Batteries included | Y |
| Cables included | AC, HDMI, IR sensor, RS-232, USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Certification | CE FCC B UL/cUL CB C-Tick EnergyStar 7.0 GOST BSMI CCC CECP EPEAT EUP |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Technical details | |
| Sustainability certificates | RoHS, ENERGY STAR |

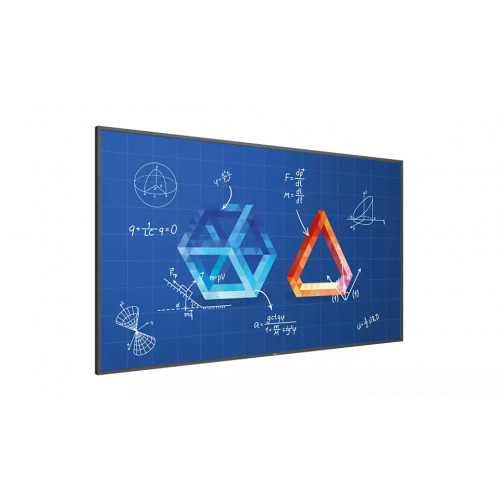

PHILIPS 65" T-LINE ANDROID UHD HEIR 20 POINTS
- Brand: Philips
- Product Code: 65BDL3552T/00
- Availability: .
- Product PDF
