- 21.5"
- FHD 1920 x 1080
- Speakers
- Flicker-Free
- Low Blue Light

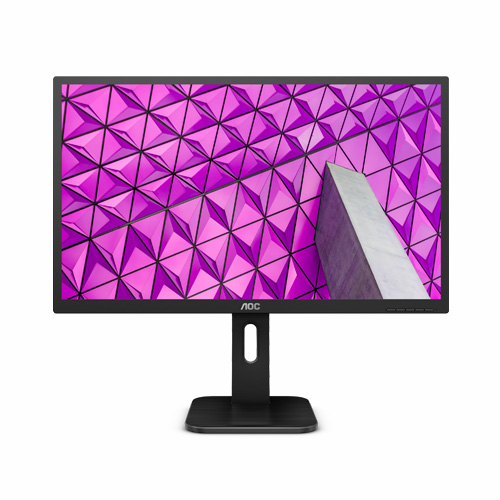

22P1D 21.5” Full HD ergonomic business display
The 22P1D is an entry levelbut fully capable business display with a 21.5" TN panel in FHD (1920x1080px) resolution. Its VGA, HDMI and DVI inputs offer rich connectivity options. Easy assembly without screws, flexible stand with 130 mm height adjustment included.
Full HD ResolutionWant to watch a Blu-ray movie in full quality, enjoy games in high resolution or read crisp text in office applications? Thanks to its Full HD resolution of 1920 x 1080 pixels, this monitor lets you do just that. Whatever you are viewing, with Full HD it will be displayed in rich detail without requiring a high-end graphics card or consuming a lot of your system’s resources.
HDMI
HDMI (High-Definition Multimedia Interface) is supported by the current gaming consoles, current GPUs, set-top boxes, supporting the HDCP digital content protection system. HDMI 1.3-1.4b versions support up to 144 Hz refresh rate@1080p and 75 Hz@1440p, while HDMI 2.0-2.0b versions support 240Hz@1080p, 144Hz@1440p and 60 Hz@2160p (4K).
Integrated Speakers
Built-in speakers make it easy to catch up with family, friends and colleagues. For movies, music, games and more, you’ll enjoy quality audio without the hassle of connecting external speakers.
Height adjustable stand
Raise or lower the screen to suit each individual’s height and seating preferences. The easy-to-adjust stand ensures hours of working comfort.
| Monitors | |
| Panel Resolution | 1920x1080 |
| Screen Size | 21.5" |
| Refresh Rate | 60 Hz |
| Interfaces & Ports | HDMI, DisplayPort |
| Speakers | Yes |
| Colour | Black |
| Display | |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | TN |
| Backlight type | W-LED |
| Touchscreen | N |
| Display brightness (typical) | 250 cd/m² |
| Response time | 2 ms |
| Display surface | Matt |
| Screen shape | Flat |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 50000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.2482 x 0.2482 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 50 - 76 Hz |
| Viewable size, horizontal | 47.7 cm |
| Viewable size, vertical | 26.8 cm |
| Digital horizontal frequency | 30 - 83 kHz |
| Display diagonal (metric) | 54.61 cm |
| Surface hardness | 3H |
| Colour depth | 6 bit |
| sRGB coverage (typical) | 99% |
| Adobe RGB coverage | 73% |
| 3D | N |
| Performance | |
| NVIDIA G-SYNC | N |
| AMD FreeSync | N |
| Fast charging | N |
| Low Blue Light technology | Y |
| Compatibility | VESA-P1 |
| Multimedia | |
| Built-in speaker(s) | Y |
| Built-in camera | N |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in microphone | N |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
| Detachable stand | Y |
| Feet colour | Black |
| Heavy metals free | Hg (mercury) |
| Certification | ISO 9241-307 |
| Ports & interfaces | |
| Built-in USB hub | N |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Y |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Audio input | Y |
| Audio output | Y |
| Headphone out | Y |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| Microphone in | Y |
| AC (power) in | Y |
| Ergonomics | |
| VESA mounting | Y |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Y |
| Height adjustment | Y |
| Height adjustment | 13 cm |
| Pivot | Y |
| Pivot angle | 1 - 90° |
| Swivelling | Y |
| Swivel angle range | -175 - 175° |
| Tilt angle range | -5 - 23° |
| On Screen Display (OSD) | Y |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Number of OSD languages | 16 |
| Plug and Play | Y |
| LED indicators | Power |
| Tilt adjustment | Y |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 16 kWh |
| Power consumption (typical) | 14.2 W |
| Power consumption (standby) | 0.28 W |
| Power consumption (off) | 0.22 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| External power adapter | N |
| Packaging content | |
| Stand included | Y |
| Cables included | AC, DVI, HDMI |
| Manual | Y |
| Audio cable length | 1.5 m |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
| Weight & dimensions | |
| Width (with stand) | 504.4 mm |
| Depth (with stand) | 198.8 mm |
| Height (with stand) | 506 mm |
| Weight (with stand) | 4.2 kg |
| Width (without stand) | 30.6 cm |
| Depth (without stand) | 4.7 cm |
| Height (without stand) | 50.4 cm |
| Weight (without stand) | 2.4 kg |
| Packaging data | |
| Package width | 715 mm |
| Package depth | 159 mm |
| Package height | 387 mm |
| Package weight | 6.2 kg |
| Package type | Box |
| DVI cable length | 1.8 m |
| Sustainability | |
| Sustainability certificates | WEEE |
| Doesn't contain | PVC/BFR |
| Recycling data | |
| Post-consumer recycled plastic | 85% |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Other features | |
| On/off switch | Y |
| TV tuner integrated | N |
| Exterior finish type | Textured |
| Recyclable packaging material | 100% |
| Bezel thickness type | Normal |
| Mean time between failures (MTBF) | 50000 h |
| Light effects | N |
AOC 21.5" B2B FHD HDMI VGA DVI 60HRZ 2MS SPK HEI PRO SERIES
- Brand: AOC
- Product Code: 22P1D
- Availability: .
- Product PDF
