- 21.5"
- FHD 1920 x 1080px
- MVA
- Speakers
- Flicker-Free
- Low Blue Light

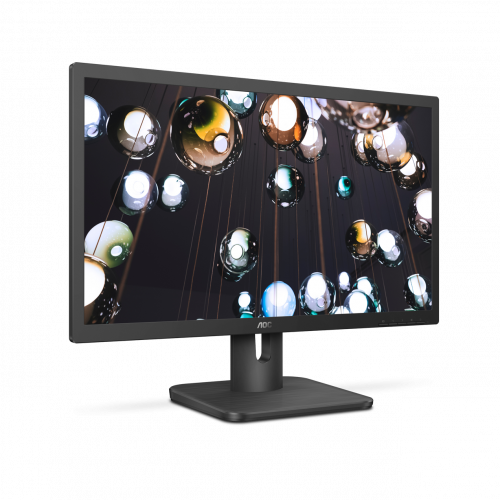

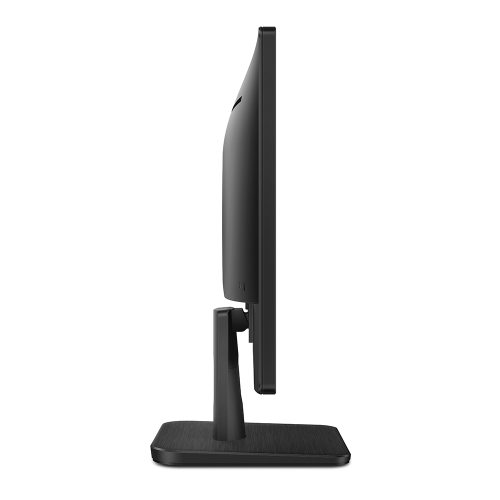

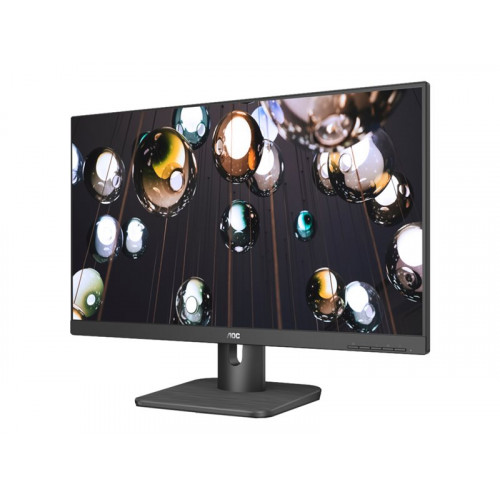

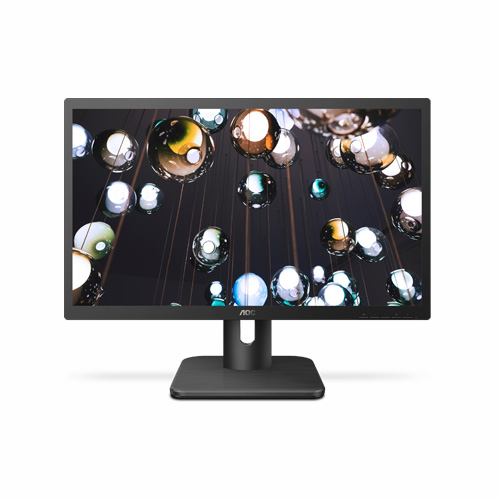

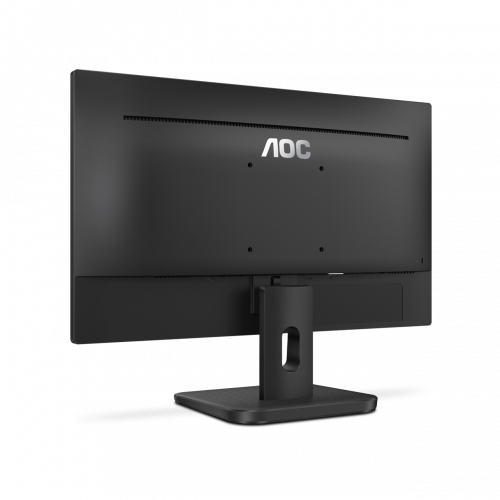

22E1Q. 21.5" Full HD ergonomic business display
The affordable 22E1Q's MVA panel combines wide viewing angles with rich contrast. Low Blue Light and Flicker-Free technologies, built-in speakers plus its sleek stand with tilt adjustment increase comfort. Environmentally friendly, certified.
Display Port
The most recent display interface standard from VESA, DisplayPort can also transfer audio, USB and other forms of data. DisplayPort version 1.2-1.2a support up to 165 Hz@1440p, 75 Hz@2160p, version 1.3 supports up to 240Hz@1440p, 120 Hz@2160p and the version 1.4 supports HDR10 specifications.
Full HD Resolution
Want to watch a Blu-ray movie in full quality, enjoy games in high resolution or read crisp text in office applications? Thanks to its Full HD resolution of 1920 x 1080 pixels, this monitor lets you do just that. Whatever you are viewing, with Full HD it will be displayed in rich detail without requiring a high-end graphics card or consuming a lot of your system’s resources.
Integrated Speakers
Built-in speakers make it easy to catch up with family, friends and colleagues. For movies, music, games and more, you’ll enjoy quality audio without the hassle of connecting external speakers.
MVA Panel
The MVA (Multi-Domain Vertical Alignment) panel displays deeper blacks and a -high contrast for extra vivid and bright images.
| Monitors | |
| Panel Resolution | 1920x1080 |
| Screen Size | 21.5" |
| Refresh Rate | 60 Hz |
| Interfaces & Ports | HDMI, VGA |
| Speakers | No |
| Colour | Black |
| Display | |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | MVA |
| Backlight type | W-LED |
| Touchscreen | N |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Display surface | Matt |
| Screen shape | Flat |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 3000:1 |
| Contrast ratio (dynamic) | 20000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.2479 x 0.2479 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 50 - 76 Hz |
| Viewable size, horizontal | 47.6 cm |
| Viewable size, vertical | 26.8 cm |
| Digital horizontal frequency | 30 - 83 kHz |
| Display diagonal (metric) | 54.61 cm |
| Surface hardness | 3H |
| Colour depth | 6 bit |
| sRGB coverage (typical) | 102% |
| Adobe RGB coverage | 72% |
| 3D | N |
| Performance | |
| NVIDIA G-SYNC | N |
| Fast charging | N |
| Flicker-free technology | Y |
| Low Blue Light technology | Y |
| Multimedia | |
| Built-in speaker(s) | Y |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in microphone | N |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Frameless design | Y |
| Front bezel colour | Black |
| Detachable stand | Y |
| Feet colour | Black |
| Heavy metals free | Hg (mercury) |
| Certification | True |
| Ports & interfaces | |
| Built-in USB hub | N |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | N |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Audio input | Y |
| Headphone out | Y |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| Microphone in | Y |
| Ergonomics | |
| VESA mounting | Y |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | N |
| Height adjustment | N |
| Pivot | Y |
| Tilt angle range | -5 - 21.5° |
| On Screen Display (OSD) | Y |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Number of OSD languages | 16 |
| Tilt adjustment | Y |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 15 kWh |
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| External power adapter | N |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 93% |
| Operating altitude | 0 - 5000 m |
| Non-operating altitude | 5000 - 12192 m |
| Packaging content | |
| Cables included | AC, Audio (3.5mm), DisplayPort, HDMI |
| Audio cable length | 1.5 m |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
| Weight & dimensions | |
| Width (with stand) | 504.4 mm |
| Depth (with stand) | 199.4 mm |
| Height (with stand) | 393.7 mm |
| Weight (with stand) | 2.72 kg |
| Width (without stand) | 305.5 mm |
| Depth (without stand) | 47 mm |
| Height (without stand) | 504.4 mm |
| Weight (without stand) | 2.34 kg |
| Packaging data | |
| Package width | 564 mm |
| Package depth | 137 mm |
| Package height | 401 mm |
| Package weight | 4.3 kg |
| Package type | Box |
| Sustainability | |
| Sustainability certificates | TCO |
| Doesn't contain | PVC/BFR |
| Recycling data | |
| Post-consumer recycled plastic | 85% |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Other features | |
| Exterior finish type | Textured |
| Recyclable packaging material | 100% |
| Bezel thickness type | Normal |
| Mean time between failures (MTBF) | 50000 h |
| Light effects | N |
AOC 21.5” B2C FHD HDMI DISPLAYVGA 60HRZ 5MS SPE ESNTLS RANGE
- Brand: AOC
- Product Code: 22E1Q
- Availability: .
- Product PDF
